The new DACAiR Powered Air Purifying Respirator (PAPR) are the most effective and versatile option to protect yourself from harmful particles in the form of dust, fumes or mists produced during welding and related techniques.

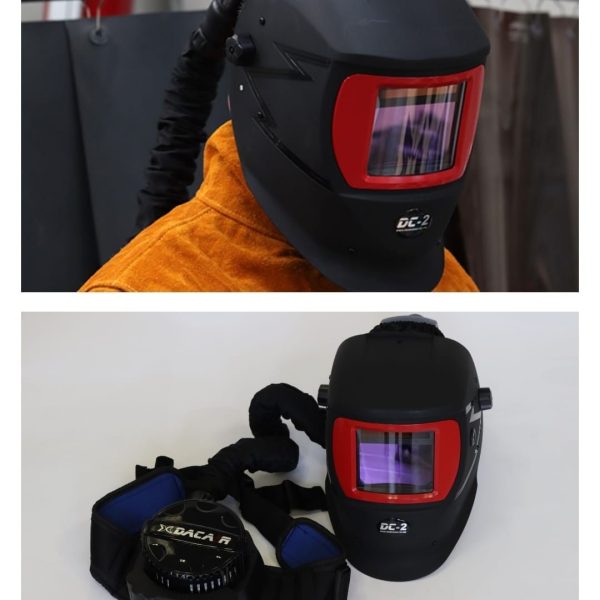

The DC-2 SL513G welding helmet with DACAiR PAPR is conform to the harmonized European Legislation 2016/425 and is certified according to the EN175:1997, EN379:2003+A1:2009 and CE EN 12941, TH2 class standards
For electrode, MIG, MAG, TIG, plasma, micro-plasma, gas welding and grinding.
- Compact, lightweight and easy to use, the DACAiR offers effective protection against toxic fumes produced during welding operations.
- Equipped with a high efficiency replaceable filter P R SL for all types of solid or liquid particles With two air flows: 180 or 220 litres / minute, minimum flow of 170 litres / minute.
- The belt-mounted blower unit delivers pure air via an air hose into a headpiece. The supply of filtered air creates a positive pressure inside of the welding helmet, which prevents the external contaminated air from entering the user’s breathing zone.
- Constant air flow controlled by a microprocessor.
- With replaceable and rechargeable Li-ion battery (7.4 V / 5200 mAh), guaranteeing an operating time of up to more than 8 hours at 180 l / min, more than 5 hours at 220 l / min (100% charged battery and brand new filters).
- Easy to use one button control panel with LED indicators for battery and filter status, that also showing the selected airflow.
- With audio visual alarm of discharged battery / clogged filter.
- 65 dB maximum noise level.
- Reduced dimensions: perfect for use in small spaces.
- The set includes a PAPR unit with comfort belt, filter and pre-filter, air hose, battery and charger, as well as a flow meter.
- Weight of complete mask (ADF included): 710 g
Materials: - Headgear: HDPE
- Mask: PA66 + glass fiber
- Protection plates: PC
- Available colours: Blue, bronze, white, yellow, green and red
- Replacement protection plates:
- Inner: 100×64,5 mm / Ref: 4701SLG
- Outer: 128×107 mm / Ref: 4720
- Clear shade: DIN 3.5
- True color technologie (grey LCD): Yes
- Variable dark shade: DIN 5-8 or 9-14 with digital inner regulation
- Grinding mode: Yes, external button
- Viewing area: 98×62 mm
- Independent light sensors: 4 independant arc sensors
- Power supply: Solar + CR2450 replaceable battery
- Clear to dark reaction time: 0.1 ms
- Dark to clear delay time: Inner digital regulation from 0,1 to 0,9 sec
- Sensitivity regulation: Digital inner
- Optical quality CE EN 379: 1/1/1/1
