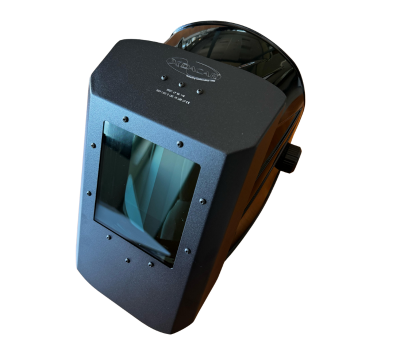

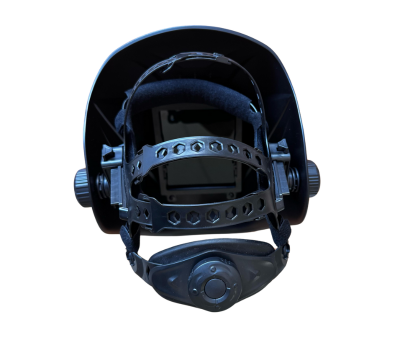

Grand laser welding helmet

The Grand Laser Welding Helmet is the perfect solution for those who need effective protection during laser welding tasks with wavelengths ranging from 950 to 1100 nm. This helmet effectively protects the user’s eyes and face from the laser beam as well as radiant light. It also includes a heat shield made of organic mineral glass that protects the laser filter in high-intensity applications to prevent deformation.

Manufactured from high-quality materials such as PA (polyamide) and aluminium, the helmet ensures a robust, durable and lightweight construction, weighing only 785 g.

The laser filter has a shade of 4 to prevent glare during welding but allows clear vision for positioning.

For those who want a darker shade, there is the option of an inner polycarbonate lens in shade 1.

Ref. 4701LA1 (to be ordered separately)

Optical Density

• Organic mineral glass: 1000–1100 nm OD7+
• Laser protection lens: 950–1100 nm OD8+

LB classification (EN207)

• Laser optical filter: 950–1100 nm D LB7 + IR LB8
• Face shield: 900–1100 nm D LB5 + IR LB8
