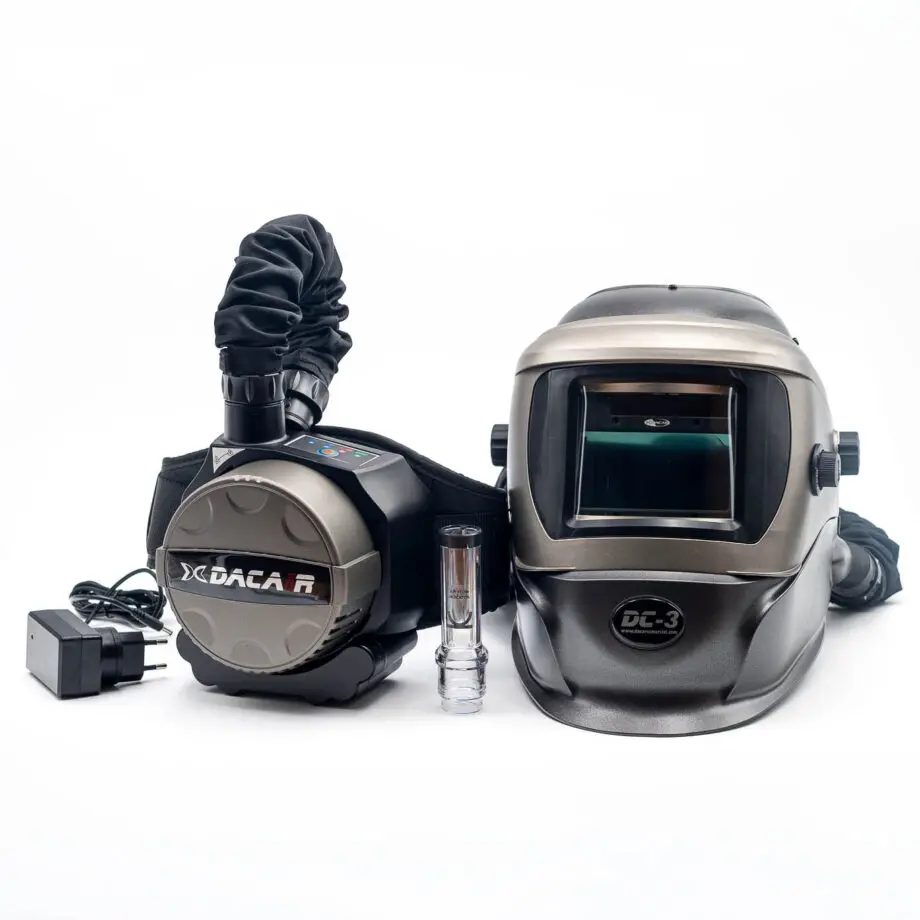

The set includes:
- Designed in Spain
- PAPR DACAiR complete with P R SL filter and pre-filter
- Padded comfort belt
- Battery
- Charger
- DC-3 DACAiR welding helmet with face seal, 2 side-airducts and headgear with MRD
- Y-shape air hose with flame retardant treated fabric protective cover
- Airflow meter
- Selected Auto Darkening Filter (ADF)
- Carrying/storage bag
Ventilation unit
Composed of a compact and lightweight motor fan (920 g) with a replaceable P R SL filter for particles and aerosols and a pre-filter, which is powered by a replaceable and rechargeable Li-Ion battery, the DACAiR unit allows a selection between two air flows: 180 or 220 l/m, always constant under electronic control.
With great autonomy of use (up to more than 8 hours), as well as visual and acoustic alarm in case of discharged battery or saturated filter for greater safety, the DACAiR equipment is managed with an easy and intuitive monitored control panel, for greater efficiency.
Its blower unit filters and directs the air, generating a positive overpressure inside the head unit, to supply breathable quality air and prevent the entry of toxic fumes into the bucco-nasal area, also producing a pleasant sensation of freshness.
It should also be noted that, thanks to their reduced dimensions, the DACAiR equipment can be used with total ease in limited spaces, with maximum wearing comfort.
Head unit

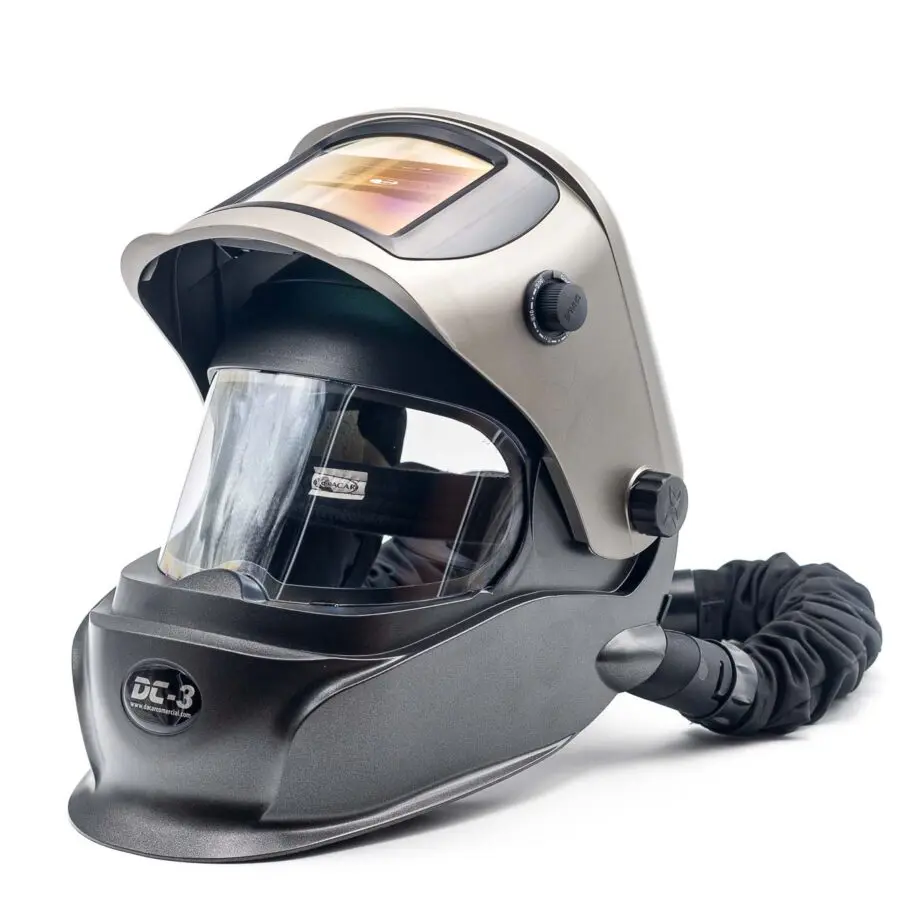

Equipped with a flip-up welding front to alternate grinding and welding tasks, the DC-3 Multifunction helmet, in addition to offering you great versatility of uses, will offer you maximum protection without sacrificing comfort. Its internal panoramic visor for grinding tasks will allow you to work safely with a maximum field of vision.
The DC-3 DACAiR welding helmet includes a harness with DRM (Mass Distribution Device) that reduces the tension on the user’s neck, allowing extra comfort throughout the working day.
The mechanical assistance of raising and lowering the welding window with shock absorber for one-hand operation make the DC-3 welding helmet a unique helmet in its class.
It is equipped with an adjustable face seal made out of flame retardant treated fabric as well as 2 side air ducts that bring the filtered air that comes from the DACAiR blower unit to the front of the mask in the mouth area.
Features DACAiR PAPR:
- Replaceable filter P R SL
- The complete unit (filter included) weights only 920 g
- Double air Flow: 180 or 220 litres / min
- Battery: Li-ion 7.4 V / 5200 mAh
- Running time with fully charged battery: At 180 l / min > 8 hours, at 220 l / min > 5 hours.
*Running time can be be reduced if the filters are clogged ori f the battery is not fully charged. - Charging cycles: >350
- Fast charging time: < 4 hours
- Assigned Protection Factor: 500 (TH3)
- Noise level: Max. 69 to 74 dB(A) depending on head unit
- Certificate: CE EN 12941 class TH3
- Warranty: Battery: 6 months / PAPR: 1 year

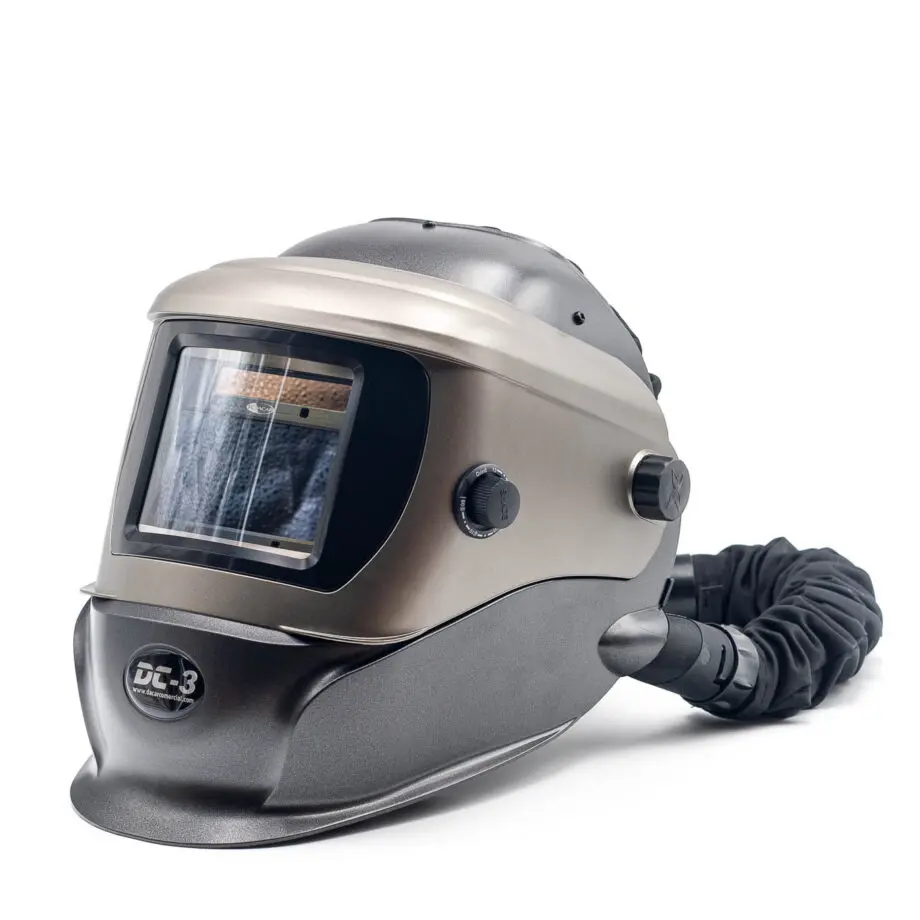

Features DC-3 DACAiR welding helmet
- With flip-up welding front to alternate grinding and welding tasks
- Large viewing area: interior panoramic XXL visor 227 x 110 mm
- Optical class 1 polycarbonate visor and filter cover
- Easy replacement of the inner visor and the filter covers
- Face shield with curved front for better dissipation of fumes and a better angle of vision without reflections.
- Harness with DRM, Mass Distribution Device, better weight distribution for greater comfort by reducing the tension on the neck
- The Y-shaped hose with double air inlet and 6 distribution channels provides the user with high breathing comfort, distributing the air evenly in the buccal-nasal area without annoying drafts for the user
- Air vents towards the visor to avoid fogging
- Extra-flexible hose for greater freedom of movement, with protective flame retardant fabric cover for a longer lifetime
- Passive or electronic filters not included
Features of compatible Auto Darkening filters :
SL513G
- Large field of view
- Clear shade DIN 3.5 with grey true color LCD
- Multi-function LCD display with settings indications
- Double range of dark shades DIN 5-8 or 9-13 with internal digital selector
- Internal digital regulation of dark to clear time from 0,1 to 1 sec.
- Internal digital sensitivity regulation
- Grinding function (external) with one-click push button
- Solar power + 1 replaceable CR2450 battery
- 4 arc-sensors
- Optical quality 1/1/1/2
- Viewing area 98 x 62 mm
- Switching speed from clear to dark: 0.1 ms
- 2 years warranty
MULTIXE (ADF718G PRO)
- Large viewing area 100 x 53 mm
- 4 independent arc sensors
- Clear shade with grey ultra-clear True Color LCD technology
- Variable dark shades with external potentiometer and internal range selector : DIN 5 – 8 and DIN 9 – 13
- Switching speed: 0.04 ms
- Adjustable dark to clear time with internal potentiometer from 0.1 to 1 second
- Internal adjustment of arc sensitivity
- Optical quality CE EN379 1/1/1/2
- With replaceable CR2032 battery combined with solar cells for a longer life time
- 2 years warranty
- Suitable for MIG-MAG, TIG, electrode, pulsed arc, plasma, micro-plasma, gas welding, cutting and grinding
MULTI-XI (ADF718i PRO):
- Clear shade with grey ultra-clear True Color LCD technology
- Dark shades: DIN 5 – DIN 8 / DIN 9 – DIN 13 with internal selector and regulator
- Adjustable dark to clear time with internal potentiometer from 0.1 to 1 second
- Internal adjustment of arc sensitivity
- Grinding mode with internal selector
- Large viewing area 100 x 53 mm
- 4 independent arc sensors
- Switching speed: 0.04 ms
- Optical quality CE EN379 1/1/1/2
- With replaceable CR2032 battery combined with solar cells for a longer life time
- 2 years warranty
- Suitable for MIG-MAG, TIG, electrode, pulsed arc, plasma, micro-plasma, gas welding, cutting and grinding
EL PASO V913I (ADF 600I):
- Clear shade with grey ultra-clear True Color LCD technology
- Variable dark shade from 9 to 13 with internal command
- Delay regulaton from 0,1 to 1 sec. and sensitivity regulation with inner commands
- Optical quality CE EN379 1/1/1/2
- Solar + non replaceable lithium battery powered
- 2 arc sensors
- Switching time: 0,1 ms.
- Viewing area 41 x 100 mm.
- 2 years warranty
EL PASO V913E (ADF600G):
- Clear shade with grey ultra-clear True Color LCD technology
- Variable dark shade from 9 to 13 with outer command
- Delay regulaton from 0,1 to 1 sec. and sensitivity regulation with inner commands
- Grinding mode with integrated switch to the dark shade regulation command
- Optical quality CE EN379 1/1/1/2
- Solar + non replaceable lithium battery powered
- 2 arc sensors
- Switching time: 0,1 ms.
- Viewing area 41 x 100 mm.
- 2 years warranty
EL PASO V913E PLUS (ADF610G PRO):
- Clear shade ultra clear with gray True Color LCD
- Variable dark shade from 9 to 13 with outer command
- Delay regulaton from 0,1 to 1 sec. and sensitivity regulation with inner commands
- Grinding mode with integrated switch to the dark shade regulation command
- Optical quality CE EN379 1/1/1/2
- Solar + 1 replaceable CR2032 lithium battery powered
- 2 arc sensors
- Switching time: 0,1 ms.
- Viewing area 45 x 100 mm.
- 2 years warranty
EL PASO F11 (ADF200F):
- Clear shade DIN 2,5 with gray True Color LCD
- Fixed dark shade 11
- With 2 internal switches for High or Low Sensitivity regulation and Long or Short Delay time
- Optical quality CE EN379 1/1/1/2
- Solar + non replaceable lithium battery powered
- 2 arc sensors
- Switching time: 0,3 ms.
- Viewing area: 91 x 39 mm.
- 2 years warranty
