DACAiR + DC-1 welding helmet + DC-GUARD face shield

The new DACAiR Powered Air Purifying Respirator (PAPR) are the most effective and versatile option to protect yourself from harmful particles in the form of dust, fumes or mists produced during welding and related techniques.

This unit is made up of the DACAiR set with a DC-Guard head unit to which the DC-1 welding helmet is added from the front. Thus, in addition to all the advantages of the DC-Guard DACAiR set, there is also the option of being able to carry out welding work in complete comfort. This unit will protect you against particles and fumes during polishing, cutting or grinding work as well as during welding processes.

Always ensuring the safety and protection of users, DACAiR equipment complies with the highest standards in respiratory protection. The DC-Guard face shield in combination with the DACAiR powered air purifying respirator guarantee maximum protection of the respiratory system, complying with the TH2 class of EN12941 as well as eye and face protection with the European Standard EN 166 in class B.

816,13870,45

Clear
Ref.: EQDACAIRDC1G_ Categorías: ,

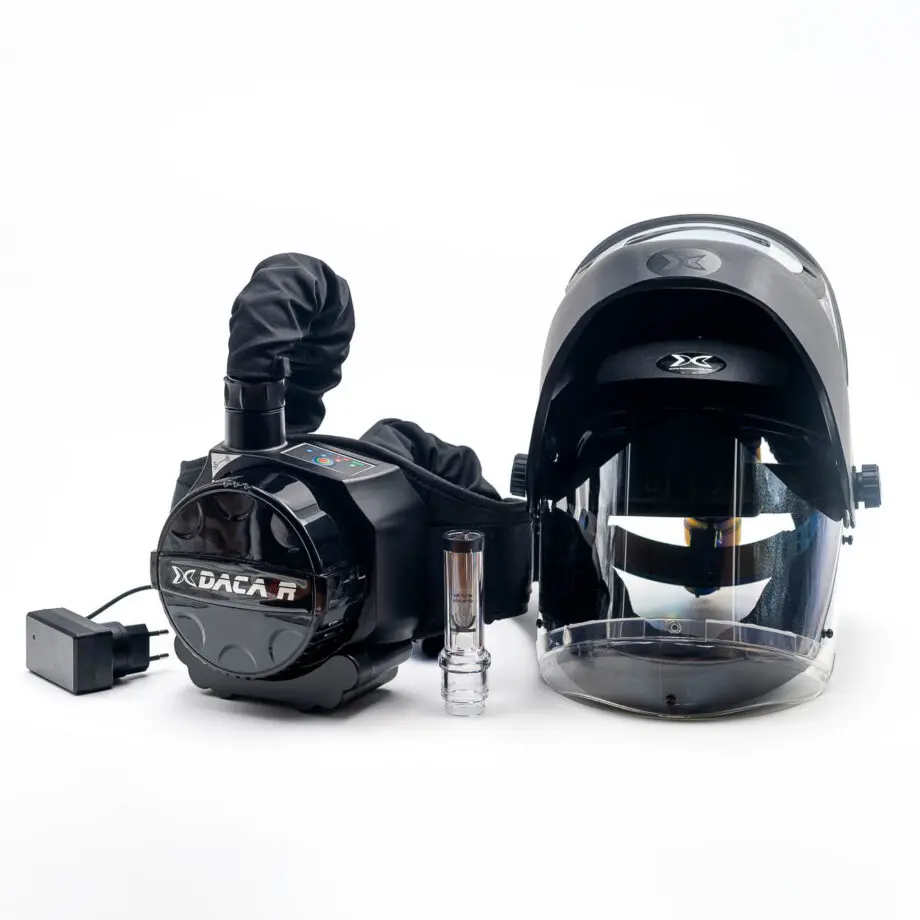

The set includes:

  • DC-Guard DACAiR face shield with face seal, airduct and 2 peel-off visors
  • PAPR DACAiR with P R SL filter and prefilter
  • DC-1 welding shell
  • Auto Darkenning Filter
  • Comfort belt
  • Battery
  • Charger
  • Airflow control device
  • Hose with protective cover made out flame retardant treated fabric
  • Carrying/storage bag

Ventilation unit

Composed of a compact and lightweight motor fan (920 g) with a replaceable P R SL filter for particles and aerosols and a prefilter, which is powered by a replaceable and rechargeable Li-Ion battery, the DACAiR unit allows a selection between two air flows: 180 or 220 l / m, always constant flows under electronic control.

With great autonomy of use (up to more than 8 hours), as well as visual and acoustic alarm in case of discharged battery or saturated filter for greater safety, the DACAiR equipment is managed with an easy and intuitive monitored control panel, for greater efficiency.

Its blower unit filters and directs the air, generating a positive overpressure inside the head unit, to supply breathable quality air and prevent the entry of toxic fumes into the bucco-nasal area, producing a pleasant sensation of freshness.

It should also be noted that, thanks to their reduced dimensions, the DACAiR equipment can be used with total ease in limited spaces, with maximum wearing comfort thanks to its belt with an easily adjustable padded back.

DC-Guard DACAiR head unit

With anti-impact polycarbonate visor with additional chin guard for better protection against projections coming from the bottom. It also incorporates two protective films of the visor of particular interest for use in situations where there are possible projections of liquids. Self-adhesive, disposable, more units can be purchased as a replacement.

It incorporates an adjustable face seal with elasticated band for a perfect fit to the operator’s face in order to guarantee the overpressure of air inside and thus an effective protection. Made out flame retardant treated fabric for use in grinding processes or related techniques.

The air duct, at the top, comes with an air baffle. Thus, the air coming from the motor fan is evenly distributed against the inner face of the visor, thus avoiding fogging and, above all, possible annoying air turbulances at eye level.

In addition, the harness with DRM, Mass Distribution Device, improves weight distribution to achieve greater comfort by reducing the tension on the user’s neck.

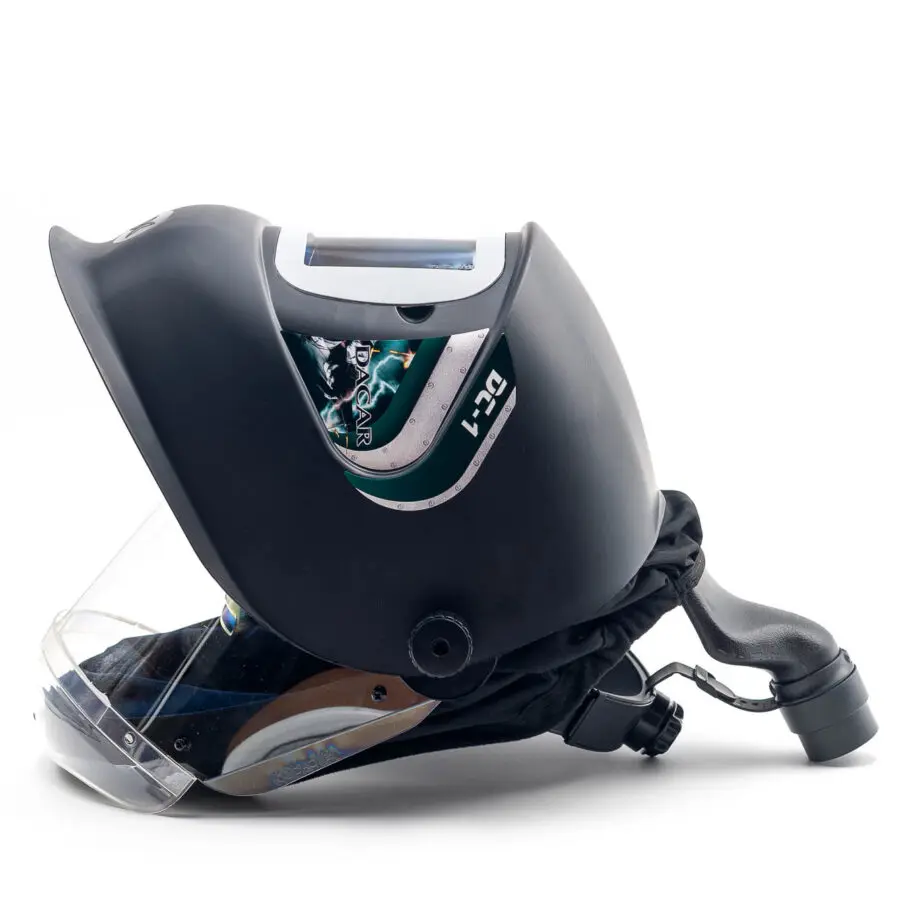

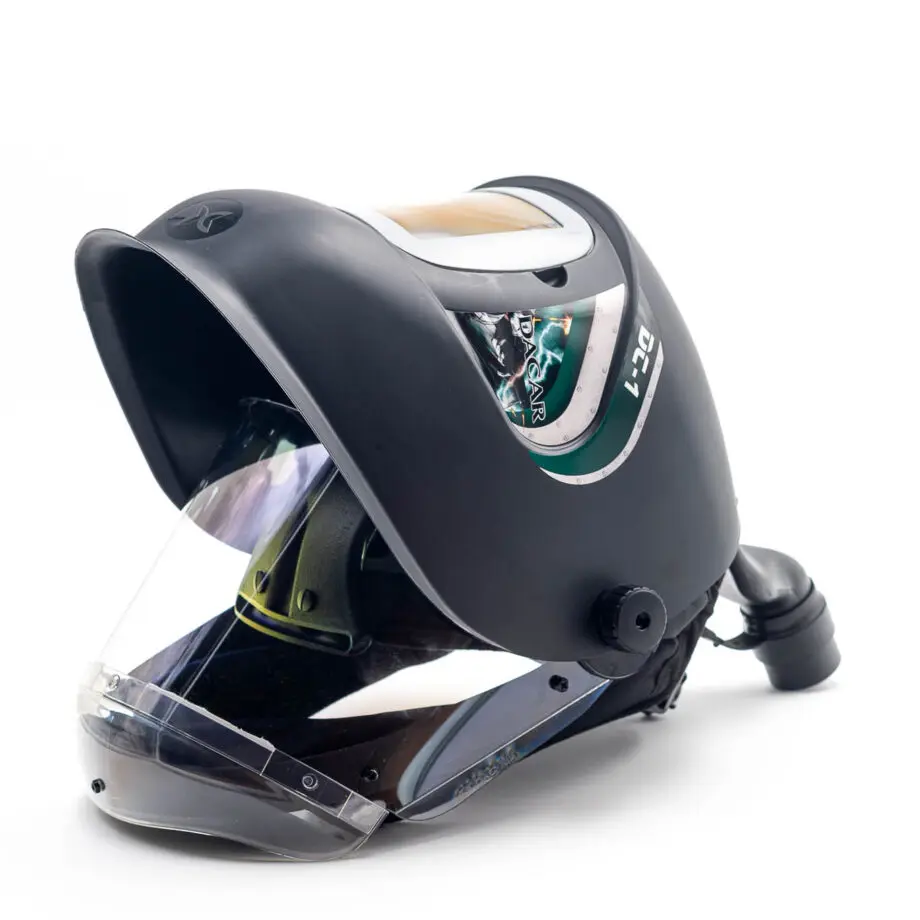

Welding shell DC-1

Its lightness makes the DC-1 welding helmet the perfect complement for the DC-Guard DACAiR head top. It will allow you to use your unit not only for grinding but also for welding.

Its compact design, but with great coverage of the face, neck and ears, offers maximum protection against projections as well as the harmful rays of welding. It is available in different colors to suit the personality of each user.

Features of the DACAiR PAPR:

  • Replaceable filter P R SL
  • The complete unit (filter included) weights only 920 g
  • Double air Flow: 180 or 220 litres / min
  • Battery: Li-ion 7.4 V / 5200 mAh
  • Running time with fully charged battery: At 180 l / min > 8 hours, at 220 l / min > 5 hours.
    *Running time can be be reduced if the filters are clogged ori f the battery is not fully charged.
  • Charging cycles: >350
  • Fast charging time:  < 4 hours
  • Assigned Protection Factor: 500 (TH3) – 50 (TH2)
  • Noise level: Max. 69 to 74 dB(A) depending on head unit
  • Certificate: CE EN 12941 class TH2 or TH3 (depending on head unit).
  • Warranty: Battery: 6 months / PAPR: 1 year

Features of compatible Auto Darkening filters:

SL513G

  • Large field of view
  • Clear shade DIN 3.5 with grey true color LCD
  • Multi-function LCD display with settings indications
  • Double range of dark shades DIN 5-8 or 9-13 with internal digital selector
  • Internal digital regulation of dark to clear time from 0,1 to 1 sec.
  • Internal digital sensitivity regulation
  • Grinding function (external) with one-click push button
  • Solar power + 1 replaceable CR2450 battery
  • 4 arc-sensors
  • Optical quality 1/1/1/2
  • Viewing area 98 x 62 mm
  • Switching speed from clear to dark: 0.1 ms
  • 2 years warranty

MULTIXE (ADF718G PRO)

  • Large viewing area 100 x 53 mm
  • 4 independent arc sensors
  • Clear shade with grey ultra-clear True Color LCD technology
  • Variable dark shades with external potentiometer and internal range selector : DIN 5 – 8 and DIN 9 – 13
  • Switching speed: 0.04 ms
  • Adjustable dark to clear time with internal potentiometer from 0.1 to 1 second
  • Internal adjustment of arc sensitivity
  • Optical quality CE EN379 1/1/1/2
  • With replaceable CR2032 battery combined with solar cells for a longer life time
  • 2 years warranty
  • Suitable for MIG-MAG, TIG, electrode, pulsed arc, plasma, micro-plasma, gas welding, cutting and grinding

MULTI-XI (ADF718i PRO):

  • Clear shade with grey ultra-clear True Color LCD technology
  • Dark shades: DIN 5 – DIN 8 / DIN 9 – DIN 13 with internal selector and regulator
  • Adjustable dark to clear time with internal potentiometer from 0.1 to 1 second
  • Internal adjustment of arc sensitivity
  • Grinding mode with internal selector
  • Large viewing area 100 x 53 mm
  • 4 independent arc sensors
  • Switching speed: 0.04 ms
  • Optical quality CE EN379 1/1/1/2
  • With replaceable CR2032 battery combined with solar cells for a longer life time
  • 2 years warranty
  • Suitable for MIG-MAG, TIG, electrode, pulsed arc, plasma, micro-plasma, gas welding, cutting and grinding

EL PASO V913I (ADF 600I):

  • Clear shade with grey ultra-clear True Color LCD technology
  • Variable dark shade from 9 to 13 with internal command
  • Delay regulaton from 0,1 to 1 sec. and sensitivity regulation with inner commands
  • Optical quality CE EN379 1/1/1/2
  • Solar + non replaceable lithium battery powered
  • 2 arc sensors
  • Switching time: 0,1 ms.
  • Viewing area 41 x 100 mm.
  • 2 years warranty

EL PASO V913E (ADF600G):

  • Clear shade with grey ultra-clear True Color LCD technology
  • Variable dark shade from 9 to 13 with outer command
  • Delay regulaton from 0,1 to 1 sec. and sensitivity regulation with inner commands
  • Grinding mode with integrated switch to the dark shade regulation command
  • Optical quality CE EN379 1/1/1/2
  • Solar + non replaceable lithium battery powered
  • 2 arc sensors
  • Switching time: 0,1 ms.
  • Viewing area 41 x 100 mm.
  • 2 years warranty

EL PASO V913E PLUS (ADF610G PRO):

  • Clear shade ultra clear with gray True Color LCD
  • Variable dark shade from 9 to 13 with outer command
  • Delay regulaton from 0,1 to 1 sec. and sensitivity regulation with inner commands
  • Grinding mode with integrated switch to the dark shade regulation command
  • Optical quality CE EN379 1/1/1/2
  • Solar + 1 replaceable CR2032 lithium battery powered
  • 2 arc sensors
  • Switching time: 0,1 ms.
  • Viewing area 45 x 100 mm.
  • 2 years warranty

EL PASO F11 (ADF200F):

  • Clear shade DIN 2,5 with gray True Color LCD
  • Fixed dark shade 11
  • With 2 internal switches for High or Low Sensitivity regulation and Long or Short Delay time
  • Optical quality CE EN379 1/1/1/2
  • Solar + non replaceable lithium battery powered
  • 2 arc sensors
  • Switching time: 0,3 ms.
  • Viewing area: 91 x 39 mm.
  • 2 years warranty
