DACAiR WH02 Grand V958I Plus

The new DACAiR Powered Air Purifying Respirator (PAPR) are the most effective and versatile option to protect yourself from harmful particles in the form of dust, fumes or mists produced during welding and related techniques.

Always ensuring the safety and protection of users, DACAiR equipment complies with the highest standards in respiratory protection. The DACAiR WH02 assemblies are certified in accordance with current legislation 425/2016 according to EN 12941: 1998 + A1: 2003 + A2: 2008 in class TH2.

The WH02 helmet with the V958I Plus filter, offers a 98 x 87 mm ultra-clear light gray latest generation LCD with True Color technology for optimal comfort, both welding and not, minimizing the feeling of claustrophobia that a filter with a small field of vision can cause and with greater safety since the operator has a very large field of vision and will be able to detect any source of danger around him.

884,631.081,04

Clear
Ref.: EQDACAIRGP Categorías: ,

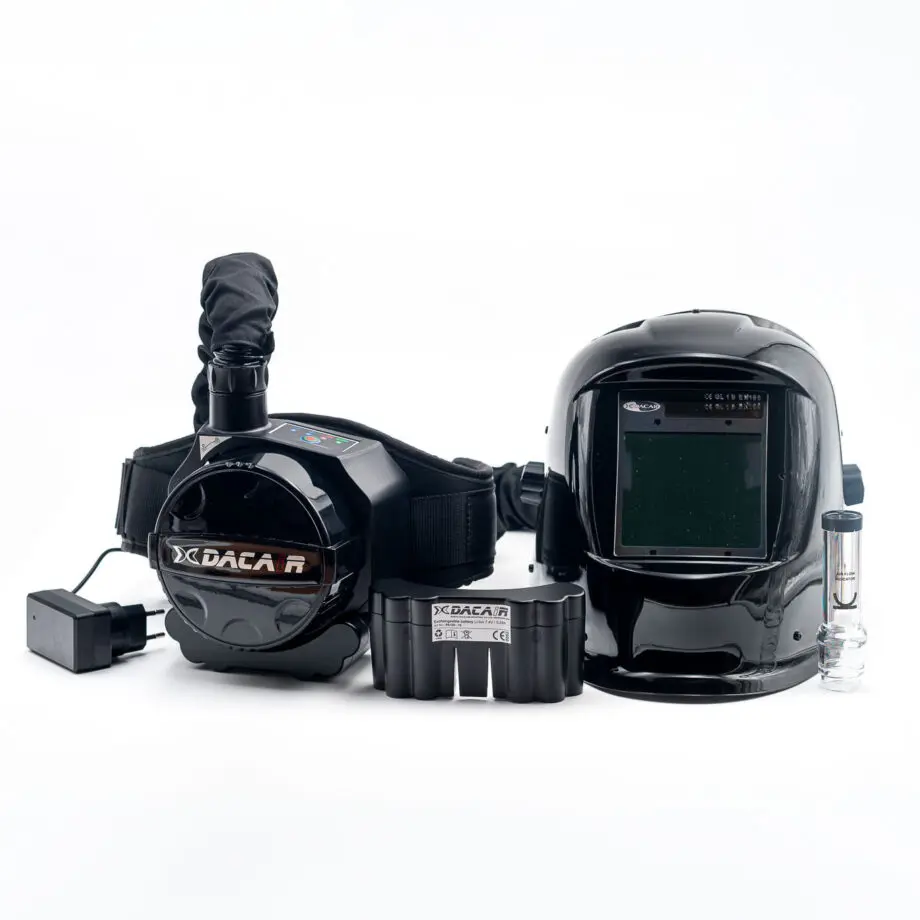

The set includes:

  • PAPR DACAiR with P R SL Filter and pre-filter
  • Comfort belt
  • 1 or 2 batteries (depending on the option you choose)
  • Charger
  • Hose with protective cover in fabric with flame retardant treatment
  • WH02 DACAiR welding helmet with face seal and air duct
  • Auto Darkening Filter V958I Plus
  • Airflow meter
  • Carrying / storage bag

Ventilation unit

Composed of a compact and lightweight motor fan (920 g) with a replaceable P R SL filter for particles and aerosols and a pre-filter, which is powered by a replaceable and rechargeable Li-Ion battery, the DACAiR unit allows a selection between two air flows: 180 or 220 l / m, always constant under electronic control.

With great autonomy of use (up to more than 8 hours), as well as visual and acoustic alarm in case of discharged battery or saturated filter for greater safety, the DACAiR equipment is managed with an easy and intuitive monitored control panel, for greater efficiency. Its blower unit filters and directs the air, generating a positive overpressure inside the head unit, to supply breathable quality air and prevent the entry of toxic fumes into the bucco-nasal area, also producing a pleasant sensation of freshness.

It should also be noted that, thanks to their reduced dimensions, the DACAiR equipment can be used with total ease in limited spaces, with maximum wearing comfort thanks to its belt with an easily adjustable padded back.

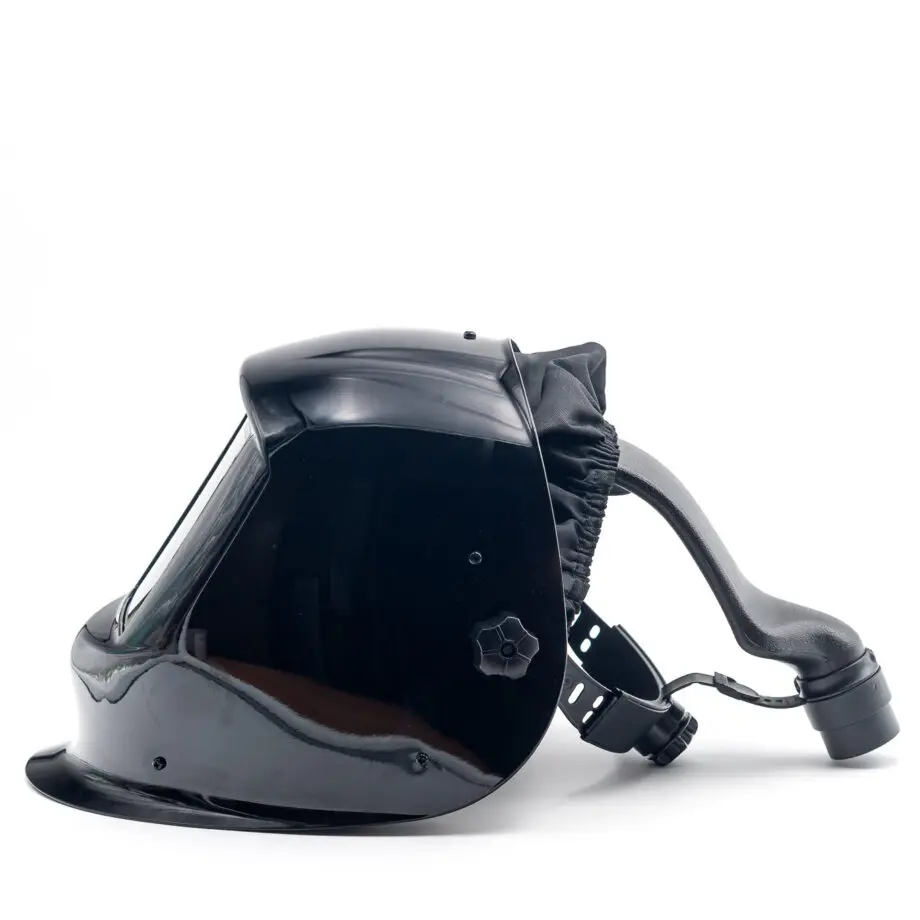

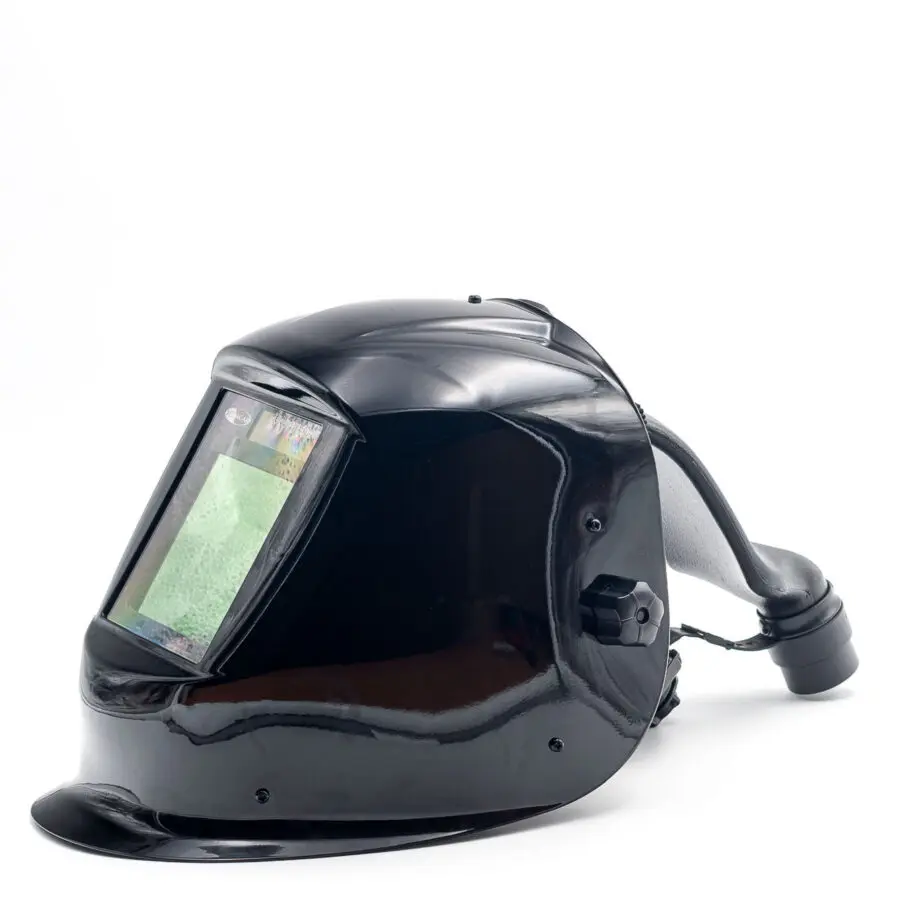

Head unit

The field of view of the WH-02 DACAiR welding helmet will amaze you. With an extra-large viewing area (98 x 87 mm) and great clarity, the user will enjoy optimal comfort throughout the working day. Its double range of dark tones will allow you to use it for all types of welding, plasma cutting or micro-plasma.

The WH-02 DACAiR helmet, painted in gloss black, is equipped with an adjustable face seal in fabric with fire retardant treatment as well as an air duct that carries the clean air that comes from the blower unit to the front of the mask. Thanks to the built-in deflector, the air provides a pleasant sensation of freshness without disturbing your vision.

Equipped with a headgear with D.R.M. (Mass Distribution Device), the WH-02 DACAiR mask is very comfortable to wear during long periods of work.



Features of the DACAiR PAPR:

  • Replaceable filter P R SL
  • The complete unit (filter included) weights only 920 g
  • Double air Flow: 180 or 220 litres / min
  • Battery: Li-ion 7.4 V / 5200 mAh
  • Running time with fully charged battery: At 180 l / min > 8 hours, at 220 l / min > 5 hours. Running time can be be reduced if the filters are clogged or if the battery is not fully charged.
  • Charging cycles: >350
  • Fast charging time:  < 4 hours
  • Assigned Protection Factor: 500 (TH3) – 50 (TH2)
  • Noise level: Max. 69 to 74 dB(A) depending on head unit
  • Certificate: CE EN 12941 class TH2 or TH3 (depending on head unit).
  • Warranty: Battery: 6 months / PAPR: 1 year

Features Grand V958I Plus (ADF958IPLUS):

  • XXL Viewing area of 98 x 87mm.
  • 4 independent arc sensors
  • Clear shade with grey ultra-clear True Color LCD technology
  • Dark shades: DIN 5 – DIN 8 / DIN 9 – DIN 13 with internal selector and regulator
  • Switching speed: 0.04 ms
  • Adjustable dark to clear time with internal potentiometer from 0.1 to 1 second
  • Internal adjustment of arc sensitivity
  • Optical quality CE EN379 1/1/1/1
  • With replaceable CR2450 battery combined with solar cells for a longer life time
  • Suitable for MIG-MAG, TIG, electrode, pulsed arc, plasma, micro-plasma, gas welding, cutting and grinding
  • 2 years warranty
No. batteries

1 battery, 2 batteries
